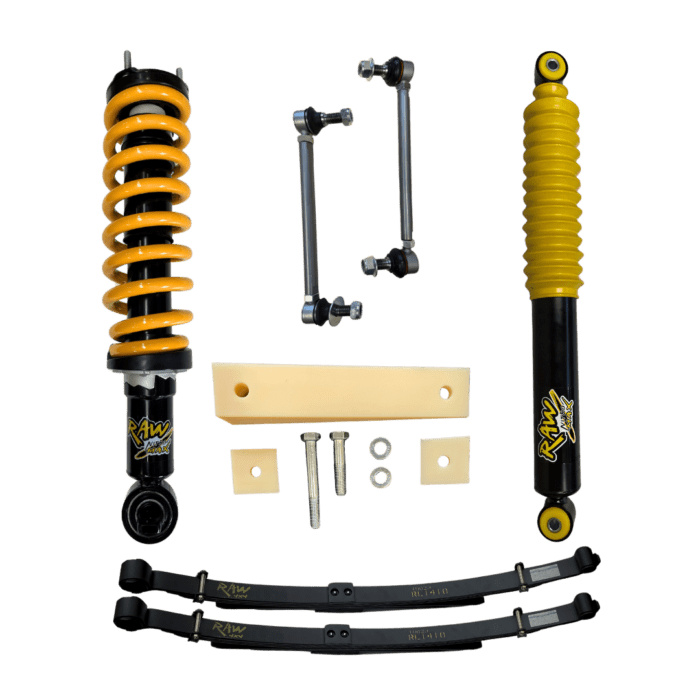

The AR45 Nitro Max Kit for the Next-Gen FORD Ranger XLT V6 (2023-on)

Friday, 5 July 2024

Get ready to conquer any terrain with the all-new RAW Nitro Max AR45 lift kit for your Ford Next Gen Ranger. This upgrade transforms your truck from mild-mannered commuter to off-road beast, letting you go from Mild to Wild when the pavement ends.

On Vehicle Height Adjustable Spring Seat

Say goodbye to the hassle of pre-adjusting your suspension! With RAW 4×4, you can now install your suspension components first, giving you the flexibility to fine-tune your vehicle front ride height, with the AR45 Nitro Max after adding a bumper and/or winch.

This innovative approach eliminates the guesswork and ensures your suspension is perfectly dialled in for your specific setup. Whether you prioritize ride height for off-road adventures or want to compensate for the weight of a new winch, our on-vehicle adjustability allows for precise calibration.

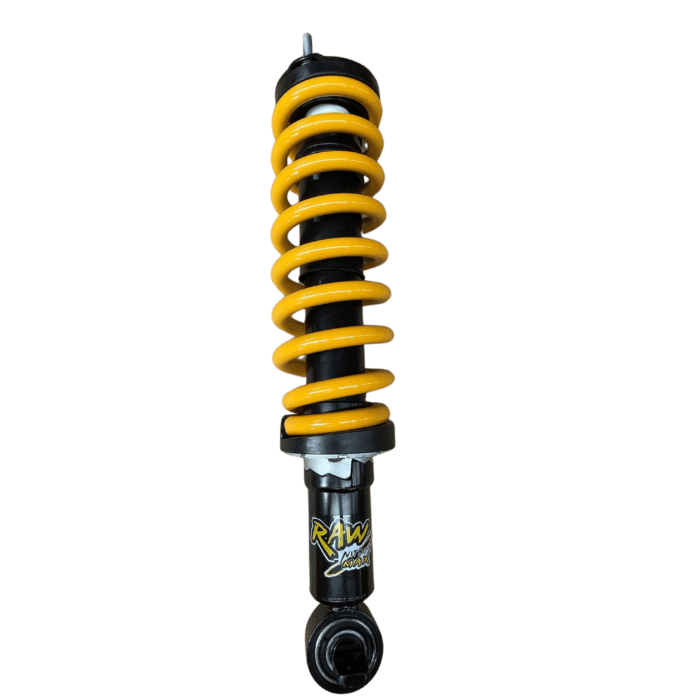

The all new AR45 Nitro Max strut for the Next gen ranger boasts an innovative Cam Adjustable spring seat height adjustment, to allowing you to fine-tune your front suspension ride height for optimal performance.

For precise adjustments:

  • Ensure both Left and Right sides are set to the same position.
  • Each adjustment provides a 3mm increase in coil preload.
  • This translates to a 5mm ride height increase or the ability to handle an additional 30kg of constant load while maintaining the existing ride height.

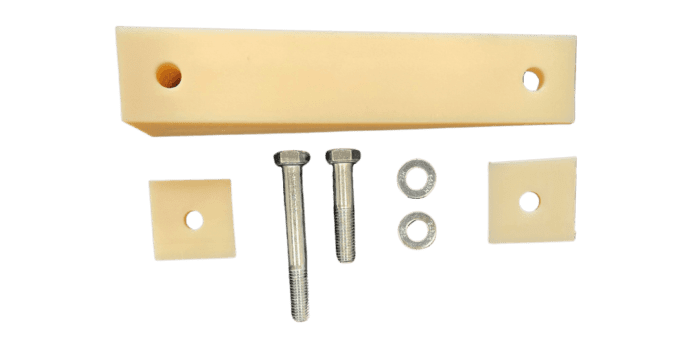

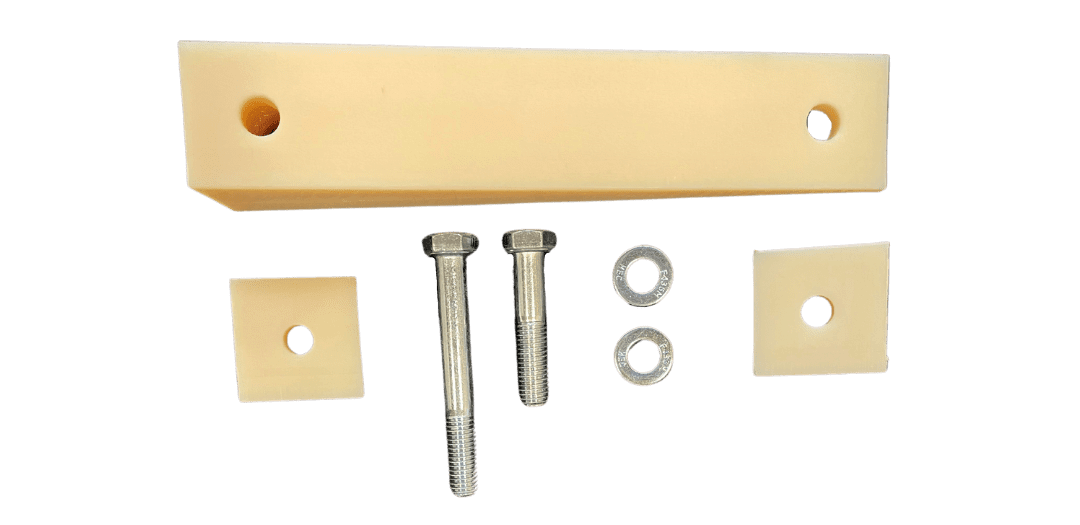

Anti vibration driveline wedge kit (V6 model only)

RAW 4×4 introduces a revolutionary vibration-free lift solution! Our innovative system combines a 2-dimensional centre bearing spacer wedge kit with specially designed alignment wedges for your RAW 4×4 rear leaf springs.

This powerful duo delivers a smooth ride with several key benefits:

  • Reduced Driveshaft Angles: The spacer wedges effectively relax the driveshaft input angle into the rear axle, minimizing vibrations and ensuring a smoother ride.
  • Improved Driveline Alignment: The alignment wedges work in harmony with the spacer kit, keeping your driveshaft precisely aligned with the transmission, reducing stress on the drivetrain.

Experience the RAW 4×4 difference: Lift your ride without sacrificing comfort or drivetrain performance!

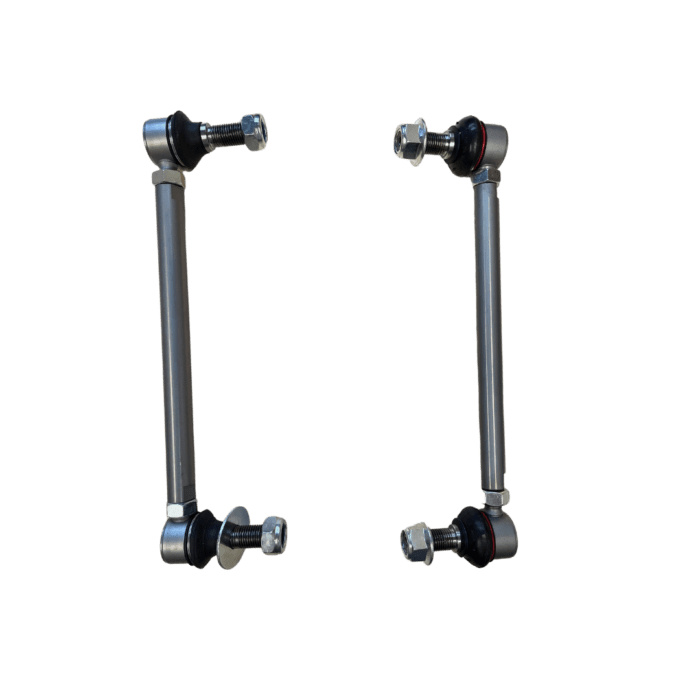

Adjustable Sway Bar Links

 RAW4x4’s high-strength, adjustable sway bar links are the perfect upgrade for off-road enthusiasts. These links address two critical needs:

  • Increased Clearance: The adjustable design allows you to maximize clearance between the lower control arm and the sway bar, essential for tackling uneven terrain and obstacles.
  • Enhanced Durability: RAW4x4’s sway bar links offer superior strength and rigidity. This translates to better protection against bending, buckling, or snapping, even under demanding off-road conditions.

Weight rated leaf spring options (0-150 kg, 150 – 300kg & 300 – 500kg)

Whether you are setting up your truck for improved comfort, a long distant tourer or as a tradie workhorse, RAW 4×4 have designed 3 leaf spring options to cater for your load carrying needs.

Each leaf spring is equipped with friction pads and clip liners for noise free operation and castor wedges for precise axle location.

Visit the RAW 4×4 Kit Builder to start outing your Next Gen Ranger suspension kit together.
